CNC Machining

CNC Machining Complex Assembly Automation Quality Processes Portfolio

EMP’s 250,000 sq. ft. manufacturing facility in Escanaba, MI offers highly integrated automation cells for the most complex jobs. Our start-to-finish services include:

Project Management

Fully integrated product development

In-house engineering, automation and tool design

Fully automated manufacturing processes

EMP’s manufacturing process is changing the value of production through innovative automated material handling to drive high-volume parts production. We deliver complete per-print products with the most challenging specifications. Our processes range from complex fuel system parts (90 cutting tools, 5-Axis machining in Ductile Iron) to simpler de-flashing operations (3 tools on Aluminum Automotive Components).

Engineering Support

Our engineering teams are the reason for EMP’s ascent into market leadership in manufacturing.  This allows us to respond to customer needs for application specific changes to our products and services.  Some of these capabilities include…

  • Vertically integrated engineering services & support
  • In-house tooling and fixture design and fabrication
  • Fully staffed engineering team
  • Customer collaborations
  • DFM for feasibility & cost
Learn More

Our Equipment

CNC Turning Centers

• 54 CNC turning centers, lathes and VTL’s
• Hobbing capabilities
• Okuma and Mori Sieki 2, 4 & 6-axis turning centers
• Lathe capacity from 1.0″ to 24″ diameters and lengths up to 59.0″
• Turn and bore to tolerances of +/-.0002
• Extensive experience producing cradle bearing features in hydraulic components

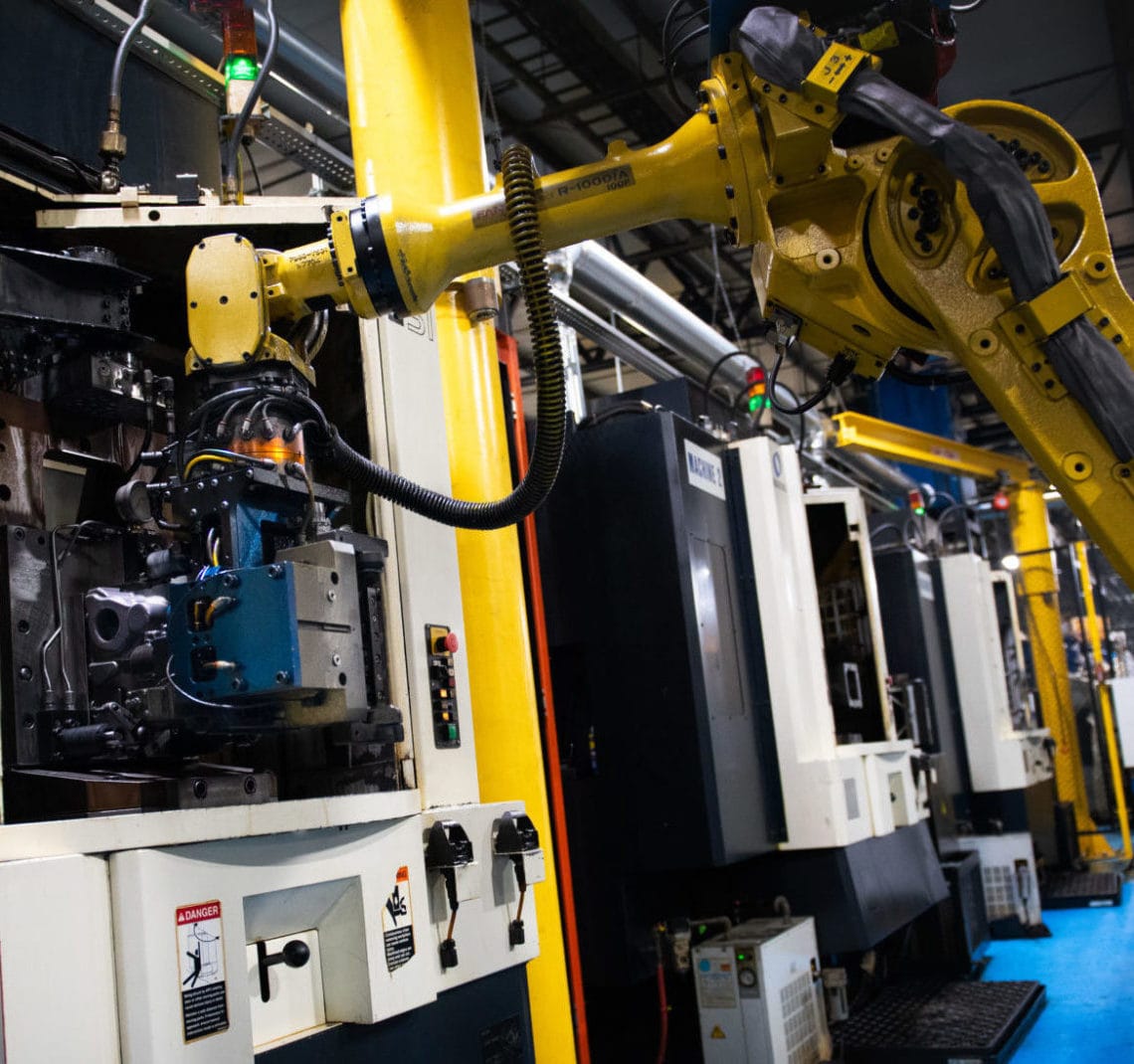

• 50 – 6-Axis Fanuc robots
– R2000, R1000, M710, LR 200ic, M20, & M16
– Gantry & pedestal mount
– Pick & place
– Wash

• 89 Horizontal machining centers arranged in work cells with up to 6 machines per cell
• Robust deburring to reduce human variables
• HMC’s are paired with multiple turning centers, high pressure washers, assembly equipment and robots organized into machining cells.
• Full 5th axis capabilities include:
– High pressure coolant
– Spindle load monitor
– Broken tool sensor
– Tool life monitoring
– In-machine part probing
• Milling capabilities to a flatness as low as .0003″, machining bores to +/-. 0002″, deep hole drilling.

Most of our VMC’s are used in manual cells paired with one or two other CNC’s in machining cells. These cell layouts allow one operator to run as many as three CNC Machines
• 17 VMC’s arranged in a variety of cells
• VMC’s ranging from 30 taper Robo-Drills, 40 taper Haas to 50 Taper Mori Seiki VMC’s
• 4-Axis capabilities

• Waterjet de-burring / de-chipping machines
• In-process robotic deburring
• Thermal deburring
• Ultrasonic agitation

In-House Competencies

In-house automation, tooling, fixture design and fabrication

  • Fully automated machining
  • 5th axis machining
  • Swiss
  • Tool grinding
  • Manual milling machines
  • Gun drilling
  • Broaching
  • Zoller CNC tool pre-setters
  • 2D/3D laser bar code and bar code ink printing
  • Balancers
  • Single pass multi-station honing to +/-.0002, 16Ra surface finish

Contact us for additional specialty or outsourced capabilities

Supply Chain Management

Materials We Work With

  • Cast iron (gray, ductile)
  • Aluminum (all grades)
  • Steel (all grades)
  • Brass
  • Bronze

Quality Control

Learn how EMP’s award winning product quality is achieved.

Learn More

EMP’s Precision Machining
