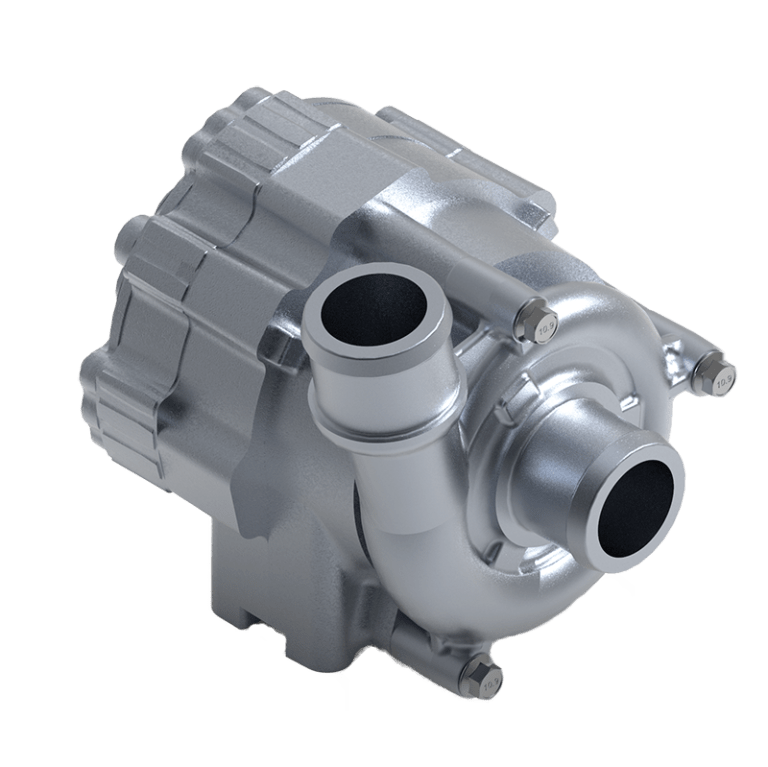

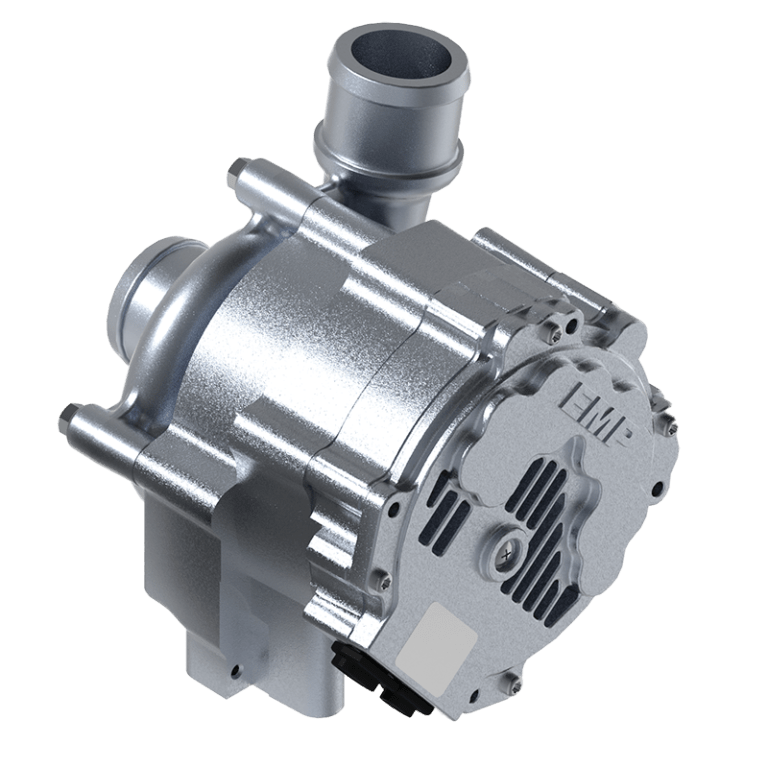

WP150

The Smart Flow® WP150 is a high performance, long life, severe duty electric water pump used in cooling systems in extreme environments. It can be used in off road applications, power generation, and large vehicle applications including fuel cell, diesel, electric, and other alternative fuel applications.

Advanced Diagnostics

Intelligent diagnostics help the user understand how the pump and the entire system is operating. The diagnostics can be communicated through SAE J1939 CAN for real time analysis, or diagnostic data can be downloaded using EMPowerConnect service tool and sent to EMP for analysis. This is especially useful for troubleshooting or system development, and dry run detection.

Brushless permanent magnet motors are combined with EMP designed motor control electronics to provide a high-efficiency long life fan. Brushless motors have no contacting parts to wear and reduce life.  The WP120 has motors available in 12V and 24V options.

Our controller features include protections against…

  • Locked rotors
  • Over temperature
  • Over current
  • Over voltage
  • Reverse battery

Our SmartFlow technology allows our line of components to communicate in a variety of styles to meet customer needs.

  • J1939 CAN
  • On/Off
  • Contact us about control customizations

EMP pumps are sealed and fully submersible for long life operation when exposed to the elements. Pumps are validated to withstand submersion and direct pressure wash.

EMP electric water pumps have the ability to read external temperature sensors and control speed based on this input. They are also able to broadcast temperatures to the vehicle via SAE J1939 CAN.

The motor, electronics, and fluid design have been optimized for high efficiency. The end result is the highest possible flow and pressure for a given amount of input power. The design is also packaged to have as small a footprint as possible for the given pump performance and minimize sound output.

EMP water pumps are validated to withstand all field conditions including thermal cycles, salt spray, pressure wash, thermal shock, vibration and shock, electrical transients, ESD, reverse battery and more.

EMP pumps can be controlled manually using EMPower Connect™ Service Tool. The software in the pumps can be changed or upgraded in the field using this tool. History data can be downloaded and includes hours of operation, temperature data, voltage data, calibration information, histogram data, and diagnostic fault codes.

Pump and Controller Specs
Type12V24V48V
Flow and Pressure45 gpm @ 20 psi45 gpm @ 20 psi45 gpm @ 20 psi
Overall Package Weight15.5 lbs15.5 lbs15.5 lbs
Sealing RatingIP6K9KIP6K9KIP6K9K
Rated Voltage9 - 18 VDC18 - 32 VDC36 - 56 VDC
Operating Temperature-40° to 203° F-40° to 203° F-40° to 203° F
Storage Temperature-40° to 257° F-40° to 257° F-40° to 257° F
Max Current65 Amps65 Amps40 Amps
Minimum Pump Speed500 RPM500 RPM500 RPM
Maximum Pump Speed4350 RPM4350 RPM4350 RPM
Hose Connections2 in2 in2 in
Control InputsOn/Off
Temp Sensor
CAN J1939
On/Off
Temp Sensor
CAN J1939
On/Off
Temp Sensor
CAN J1939
Controller Temperature Range-40° to 203° F-40° to 203° F-40° to 203° F
Product Options
12V
24V
48V
Carbon Steel
Stainless Steel
Horizontal
Vertical
Dual
On/Off
PWM
Thermistor
CAN J1939
Power Vs Flow Performance
WP150 Power Vs Flow Performance Diagram
Pressure Rise vs Flow Performance
WP150 Pressure Rise vs Flow Performance Diagram
WP150 Diagram
WP150 Diagram
