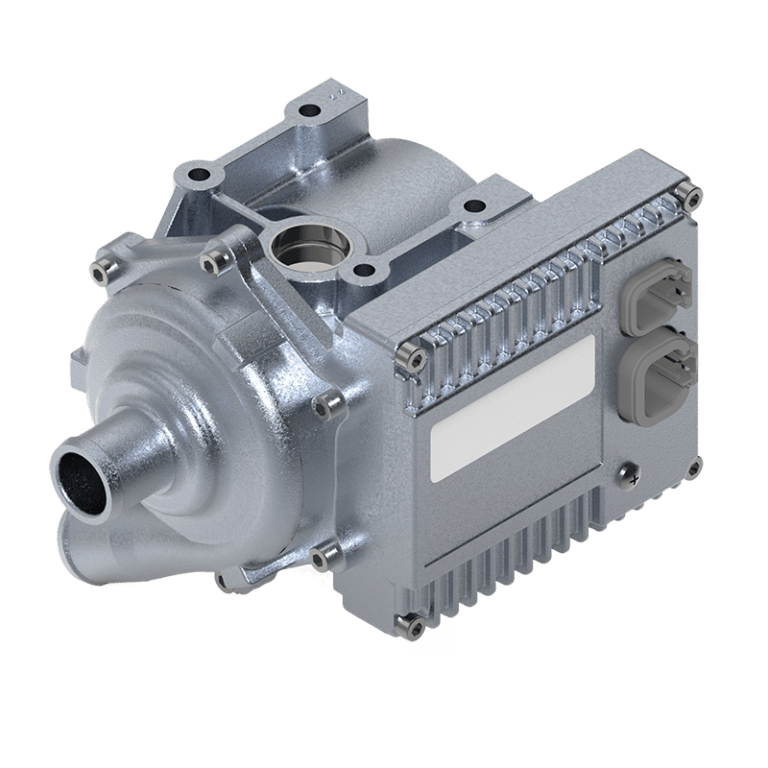

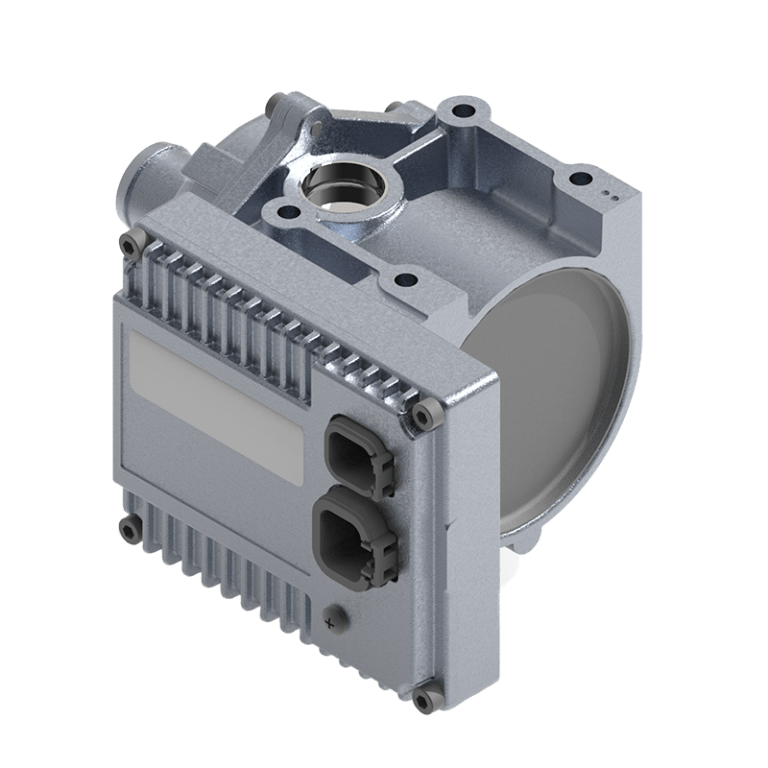

WP32

The WP29/32 is a high performance, long life, severe duty electric water pump used in cooling systems in extreme environments. It is used in the transit bus market, off road applications, power grid battery cooling, stationary power generation and roof mounted cooling systems.

DC Brushless Motor & Controller

Brushless permanent magnet motors are combined with EMP designed motor control electronics to provide a high-efficiency long life fan. Brushless motors have no contacting parts to wear and reduce life.

Our controller features include protections against…

  • Locked rotors
  • Over temperature
  • Over current
  • Over voltage
  • Reverse battery

Our SmartFlow technology allows our line of components to communicate in a variety of styles to meet customer needs.

  • J1939 CAN
  • On/Off
  • Contact us about control customizations

Using SAE J1939-15 CAN, pumps can be operated anywhere between the pre-configured minimum and maximum speeds. This allows the user to optimize speed to minimize power consumption or change speed to optimize the performance of the overall system. It can also operate as a single speed ON/OFF pump that delivers continuous output set by the customer requirements.

EMP pumps are sealed and fully submersible for long life operation when exposed to the elements. Pumps are validated to withstand submersion and direct pressure wash.

EMP electric water pumps have the ability to read external temperature sensors and control speed based on this input. They are also able to broadcast temperatures to the vehicle via SAE J1939 CAN.

The motor, electronics, and fluid design have been optimized for high efficiency. The end result is the highest possible flow and pressure for a given amount of input power. The design is also packaged to have as small a footprint as possible for the given pump performance and minimize sound output.

EMP water pumps are validated to withstand all field conditions including thermal cycles, salt spray, pressure wash, thermal shock, vibration and shock, electrical transients, ESD, reverse battery and more. Durability testing has surpassed 23,000 hours of continuous operation at maximum speed and operating temperature.

EMP has been producing the brushless electric water pumps since 2006. They have achieved in excess of 30,000 hours of life in demanding continuous applications.

Pump and Controller Features
Type12V24V
Flow and pressure6 gpm @ 25 psi6 gpm @ 25 psi
Overall Package Weight (Without Fluid)6.4 lbs6.4 lbs
Sealing RatingIP6K9KIP6K9K
Rated Voltage9-18 VDC18-32 VDC
Operating Temperature-40° to 203° F-40° to 203° F
Storage Temperature-58° to 257° F-58° to 257° F
Max Current25 Amps15 Amps
Pump Speed Range750 - 4600 RPM750 - 4600 RPM
Hose Connection1 in1 in
Control InputsOn/Off
Temp Sensor
CAN J1939
On/Off
Temp Sensor
CAN J1939
Controller Temperature Range-40° to 203° F-40° to 203° F
Shaft ConfigurationsCarbon Steel
Stainless Steel
Carbon Steel
Stainless Steel
Approval Options
*Available Upon Inquiry
UL*
CSA
E-Mark
UL*
CSA
E-Mark
Pressure vs Flow Performance
WP32 Pressure vs Flow Performance Diagram
Pressure vs Flow Performance - Metric
WP32 Pressure vs Flow Performance - Metric Diagram
WP32 Diagram
WP32 Diagram
