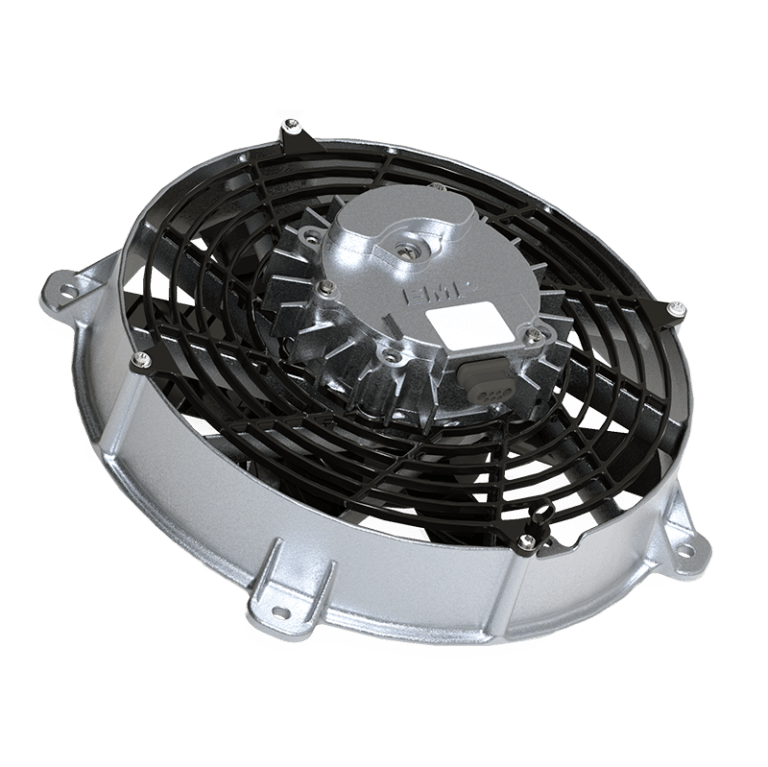

11″ Fan

EMP’s 11″ electric fan is a high performance, long life, severe duty 11 inch fan used in cooling systems in extreme environments. It is used in the transit bus market, off road applications, power grid battery cooling, stationary power generation and roof mounted cooling systems.

Brushless DC Motor & Controller

Brushless permanent magnet motors are combined with EMP designed motor control electronics to provide a high-efficiency long life fan. Brushless motors have no contacting parts to wear and reduce life.

Our controller features include protections against…

  • Locked rotors
  • Over temperature
  • Over current
  • Over voltage
  • Reverse battery

Our SmartFlow technology allows our line of components to communicate in a variety of styles to meet customer needs.

  • J1939 CAN
  • PWM
  • On/Off
  • EMP-Link (proprietary LIN) configurations
  • Contact us about control customizations

EMP fans feature die cast aluminum housings for strength, durability and improved heat transfer from the motor and electronics. This allows EMP fans to provide continuous high output airflow performance in extreme temperature conditions.  The fan blade and optional finger guard are made of high temperature, glass filled polymers to perform in the harshest environments.

Optional finger guard protection available that conforms to SAE J1308 requirements while minimizing airflow losses.

EMP fans are validated to withstand all field conditions including thermal cycles, salt spray, pressure wash, thermal shock, vibration and shock, electrical transients, ESD, reverse battery and more. Durability testing has surpassed 25,000 hours of continuous operation.

EMP has been producing brushless fans since 2006. Fans have achieved in excess of 70,000 hours of life in primary engine cooling applications where the electric fans are the only source of airflow for the engine. These fans are being reused on their 2nd or 3rd engine in many cases.

EMP fans are fully reversible for debris removal and heat exchanger clean out. The fans can be reversed using the control input or they can be configured to reverse automatically at ignition-on or at a timed interval. Fan reversal has been field proven in severe environments like forestry and stationary power generation to reduce or even eliminate the need for manual heat exchanger cleaning.

EMP fans can be run at any speed between the programmed minimum and maximum speed to minimize power consumption and noise. Variable speed also allows for accurate control of airflow and temperature optimization in cooling systems.

EMP fans are sealed and fully submersible for long life operation when exposed to the elements. Fans are validated to withstand submersion and direct pressure wash. EMP fans can be submerged while running without damaging the fan. The fan will simply stop rotating and continue operation once removed from the water.

EMP fans can be controlled manually using EMPower Connect™ Service Tool. The software in the fans can be changed or upgraded in the field using this tool. History data can be downloaded and includes hours of operation, temperature data, voltage data, calibration information, histogram data, and diagnostic fault codes.

Type12V24V
Airflow1,000 CFM @ 1.0 Inch H201,000 CFM @ 1.5 Inch H20
Weight8.5 lbs8.5 lbs
Operating Temperature-40° to 203° F-40° to 203° F
Storage Temperature-58° to 257° F-58° to 257° F
Sealing RatingIP6K9KIP6K9K
Fan ConfigurationPush or PullPush or Pull
Voltage9 - 18 VDC18 - 32 VDC
Max Current27.5 Amps27.5 Amps
Max Fan Speed4000 RPM5500 RPM
Minimum Fan Speed500 RPM500 RPM
Finger Guard ProtectionSAE J1308SAE J1308
Reversal OptionsCAN, PWM, Enable or Timed IntervalCAN, PWM, Enable or Timed Interval
Control InputsCAN, On/Off, PWM or ThermistorCAN, On/Off, PWM, or Thermistor
Options
12V
24V
Push
Pull
CAN J1939
On/Off
PWM
Thermistor
Contact us for custom configurations

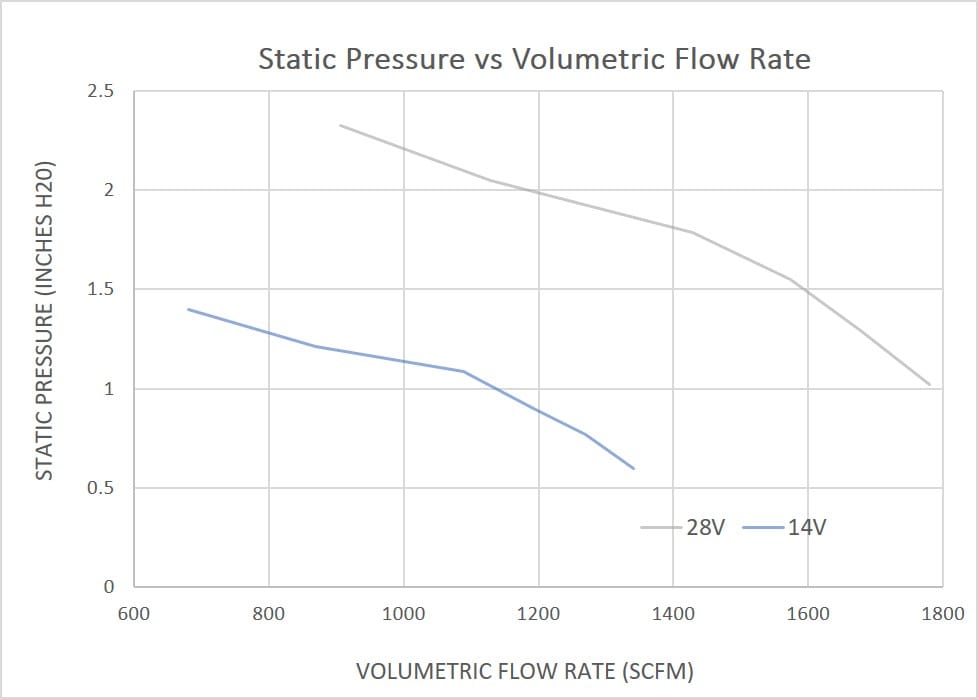

Pressure Vs Flow Performance
11″ Fan Pressure Vs Flow Performance Diagram
Power Vs Flow Performance
11″ Fan Power Vs Flow Performance Diagram

EMP shows a flow rate that is much more impressive.

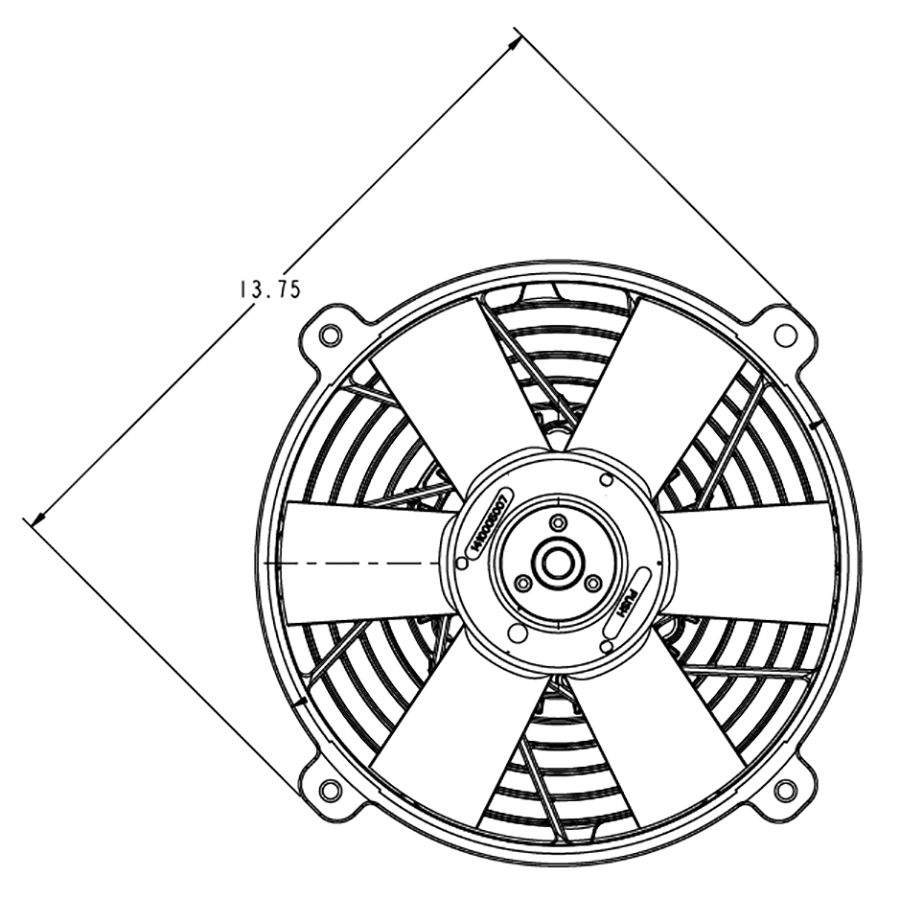

11″ Fan Diagram

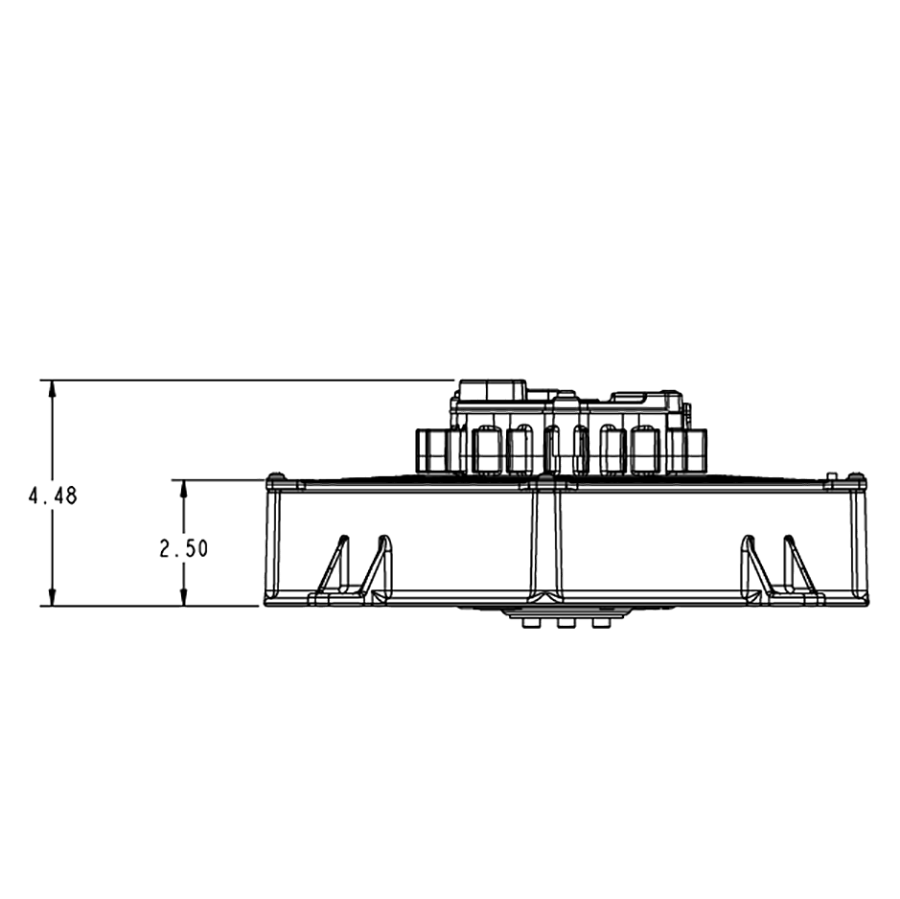

11″ Fan Diagram
